LARGUS SPEC K COILOVER KIT FOR SUZUKI WAGON R MH23S 2WD 01015108007-QQ-1268
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108007-QQ-1268 |
| Compatible Car | SUZUKI WAGON R MH23S 2WD |

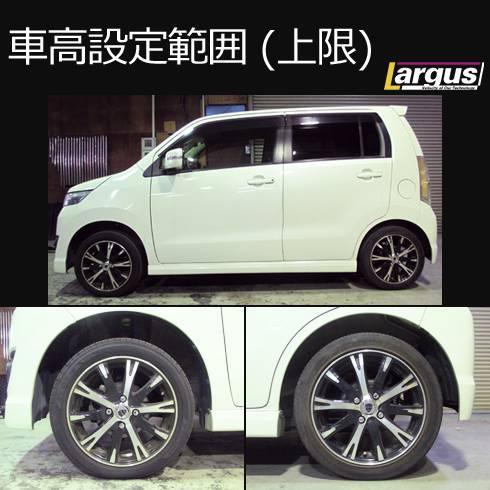

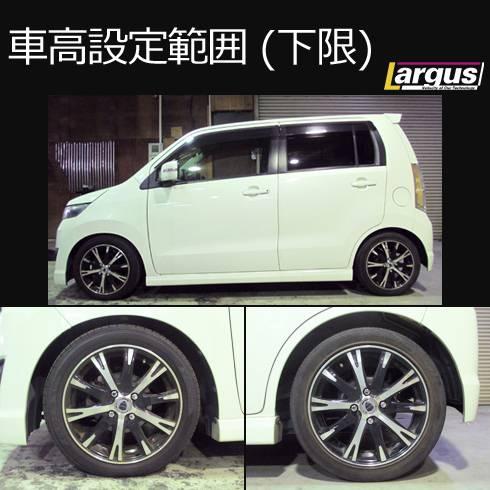

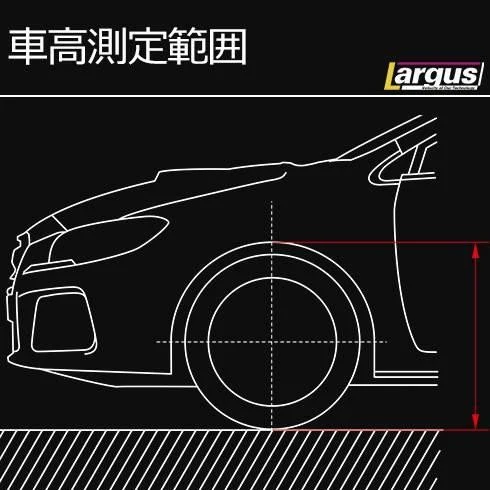

| Product Description | Car Manufacturer: Suzuki Vehicle Model: Wagon R Vehicle Model: MH23S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 140mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 565mm - 626mm Vehicle Height Adjustment Range R (Reference Value): 585mm - 607mm Lowering Amount F (Reference Value): -47mm to +14mm Down R (reference value): -42mm to -20mm |
| Remarks | through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product may be changed without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108007-QQ-1268 |
| Compatible Car | SUZUKI WAGON R MH23S 2WD |
| Product Description | Car Manufacturer: Suzuki Vehicle Model: Wagon R Vehicle Model: MH23S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 140mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 565mm - 626mm Vehicle Height Adjustment Range R (Reference Value): 585mm - 607mm Lowering Amount F (Reference Value): -47mm to +14mm Down R (reference value): -42mm to -20mm |
| Remarks | through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product may be changed without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$1.66
Original: $4.73
-65%LARGUS SPEC K COILOVER KIT FOR SUZUKI WAGON R MH23S 2WD 01015108007-QQ-1268—
$4.73
$1.66Description
| Brand | LARGUS |
| Series Name | SPEC K COILOVER KIT |
| Product Number | 01015108007-QQ-1268 |
| Compatible Car | SUZUKI WAGON R MH23S 2WD |
| Product Description | Car Manufacturer: Suzuki Vehicle Model: Wagon R Vehicle Model: MH23S Year: - Drive System: 2WD Product: Full-Length Adjustable Suspension Kit SpecK Spring Rate F: 5kg Spring Rate R: 2.5kg Free Length F: 200mm Free Length R: 140mm Upper Mount F: Fixed Reinforced Rubber Upper Mount R: Mountless Damping Position F: Fixed with Dial (Top of Upper Mount) Damping Position R: Disc Type (Inside Wheelhouse) Vehicle Height Adjustment Range F (Reference Value): 565mm - 626mm Vehicle Height Adjustment Range R (Reference Value): 585mm - 607mm Lowering Amount F (Reference Value): -47mm to +14mm Down R (reference value): -42mm to -20mm |
| Remarks | through-type lower bracket is available as an option. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product may be changed without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
