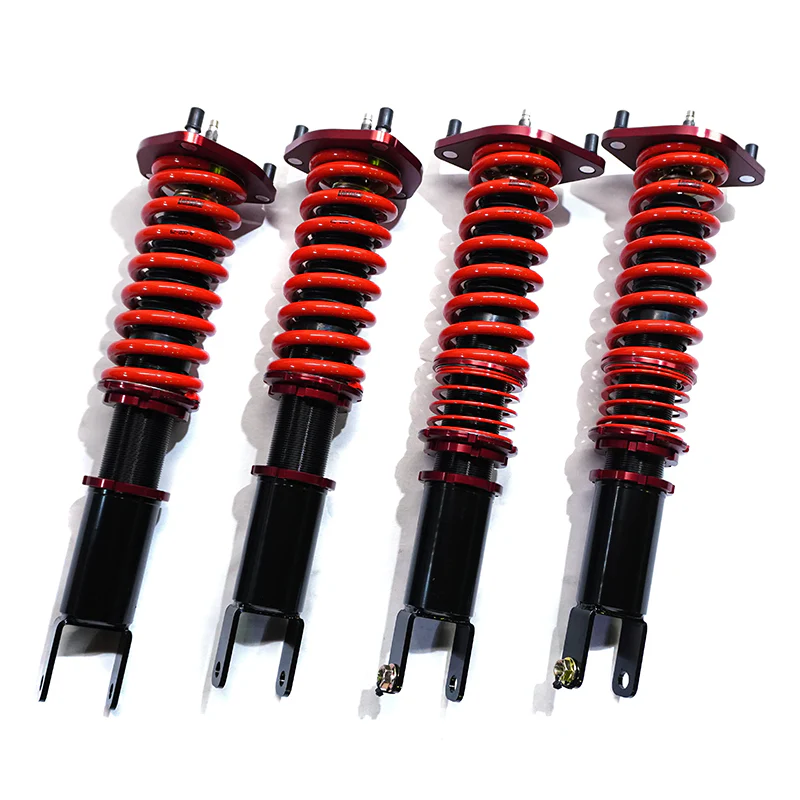

LARGUS SPEC SR COILOVER KIT FOR MAZDA ROADSTER ND5RE 2WD 01011410701-QQ-4
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011410701-QQ-4 |
| Compatible Car | MAZDA ROADSTER ND5RE 2WD |

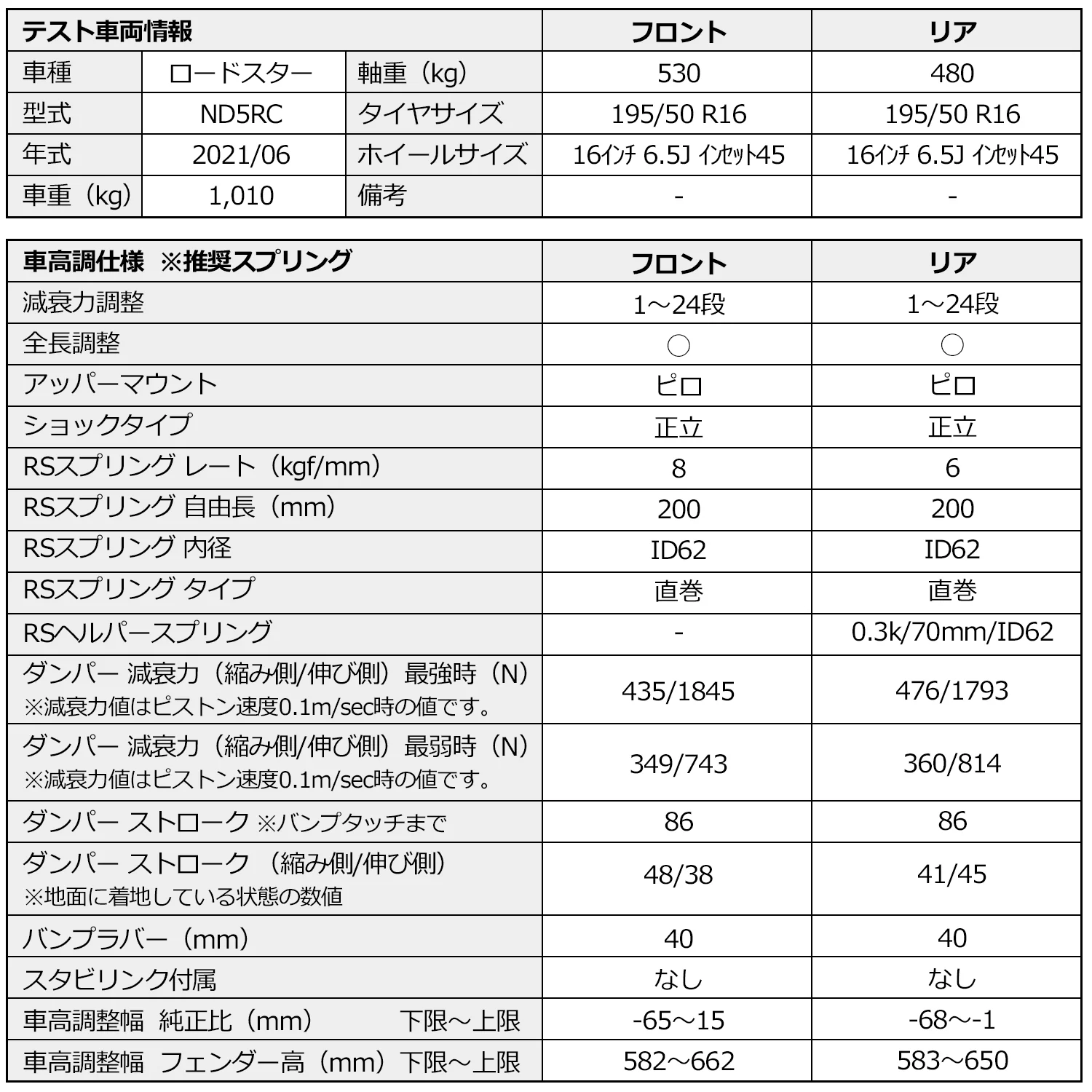

| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: MAZDA Model: Roadster Vehicle model: ND5RE Year: 2024/1~ Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: 200mm Free length: 200mm Front upper mount: Fixed pillow Rear upper mount: Fixed pillow Front damping position: Separate dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 582mm - 662mm Rear height adjustment range: 583mm - 650mm Lowering amount: -65mm to +15mm Down R: -68mm to -1mm |

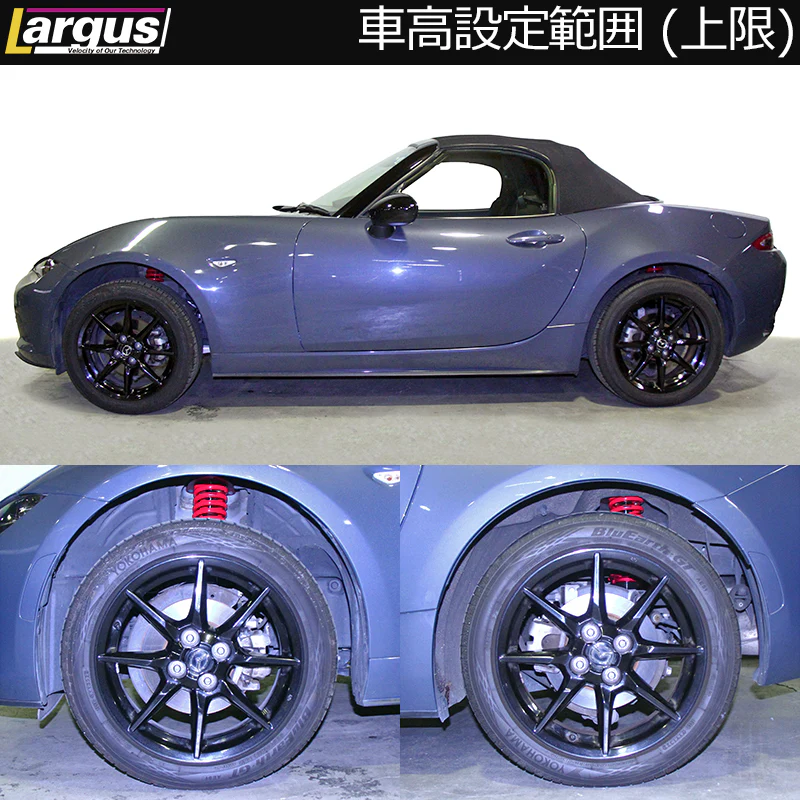

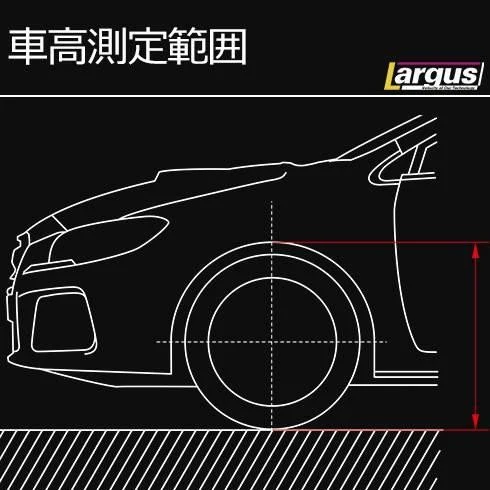

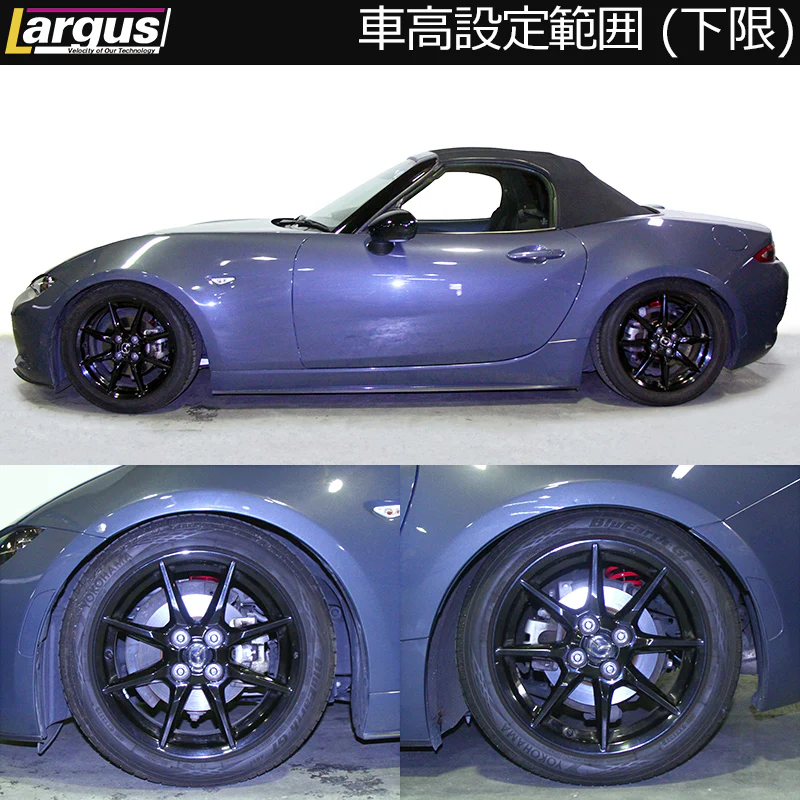

| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. Cannot be fitted with a factory front tower bar. The vehicle height adjustment range and lowering amount are based on the ND5RC (Roadster). The vehicle height adjustment range and lowering amount are based on the base specification springs (helper springs for rear only). *The vehicle height setting range, lowering amount, and installation images are for reference only and are based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011410701-QQ-4 |
| Compatible Car | MAZDA ROADSTER ND5RE 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: MAZDA Model: Roadster Vehicle model: ND5RE Year: 2024/1~ Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: 200mm Free length: 200mm Front upper mount: Fixed pillow Rear upper mount: Fixed pillow Front damping position: Separate dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 582mm - 662mm Rear height adjustment range: 583mm - 650mm Lowering amount: -65mm to +15mm Down R: -68mm to -1mm |
| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. Cannot be fitted with a factory front tower bar. The vehicle height adjustment range and lowering amount are based on the ND5RC (Roadster). The vehicle height adjustment range and lowering amount are based on the base specification springs (helper springs for rear only). *The vehicle height setting range, lowering amount, and installation images are for reference only and are based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$2.48
Original: $7.10
-65%LARGUS SPEC SR COILOVER KIT FOR MAZDA ROADSTER ND5RE 2WD 01011410701-QQ-4—
$7.10
$2.48Description
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011410701-QQ-4 |
| Compatible Car | MAZDA ROADSTER ND5RE 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: MAZDA Model: Roadster Vehicle model: ND5RE Year: 2024/1~ Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: 200mm Free length: 200mm Front upper mount: Fixed pillow Rear upper mount: Fixed pillow Front damping position: Separate dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 582mm - 662mm Rear height adjustment range: 583mm - 650mm Lowering amount: -65mm to +15mm Down R: -68mm to -1mm |
| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. Cannot be fitted with a factory front tower bar. The vehicle height adjustment range and lowering amount are based on the ND5RC (Roadster). The vehicle height adjustment range and lowering amount are based on the base specification springs (helper springs for rear only). *The vehicle height setting range, lowering amount, and installation images are for reference only and are based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
