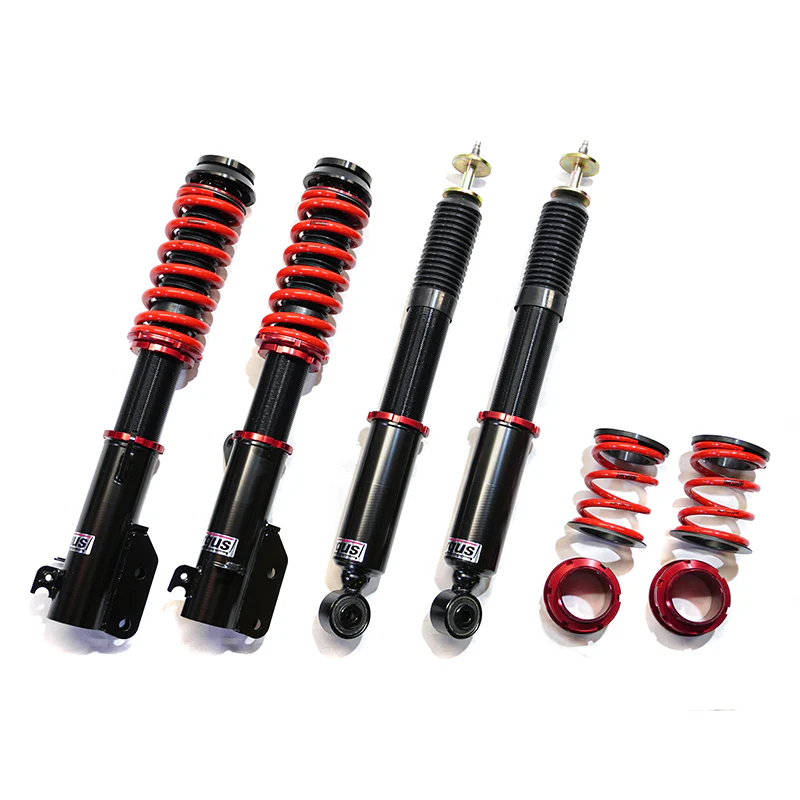

LARGUS SPEC SR COILOVER KIT FOR SUZUKI SWIFT SPORT ZC33S 2WD 01011408001-QQ-1
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011408001-QQ-1 |
| Compatible Car | SUZUKI SWIFT SPORT ZC33S 2WD |

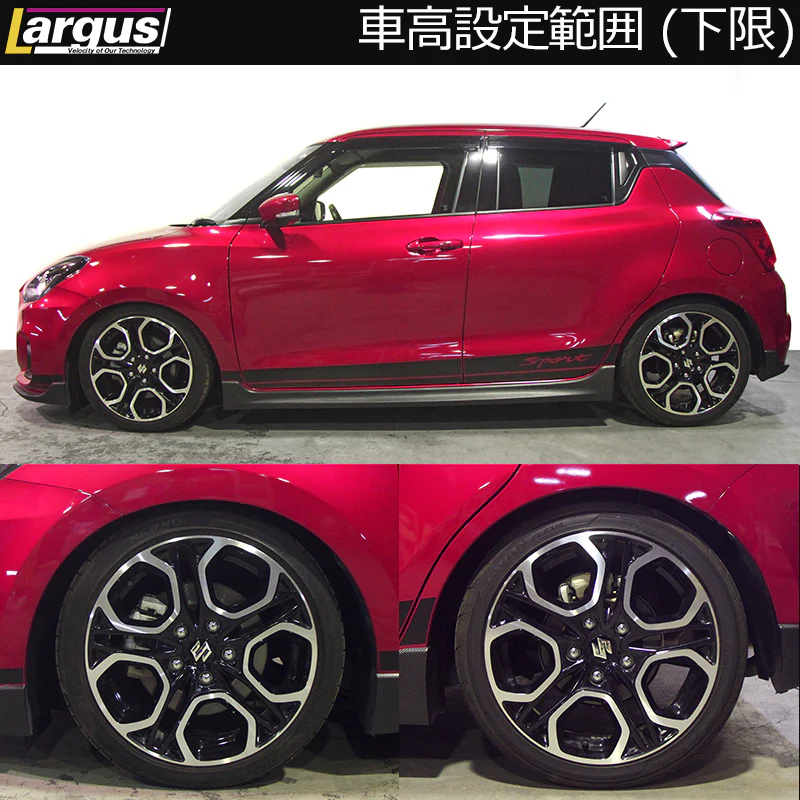

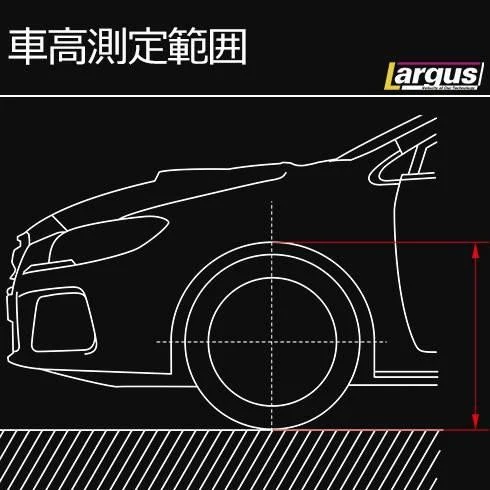

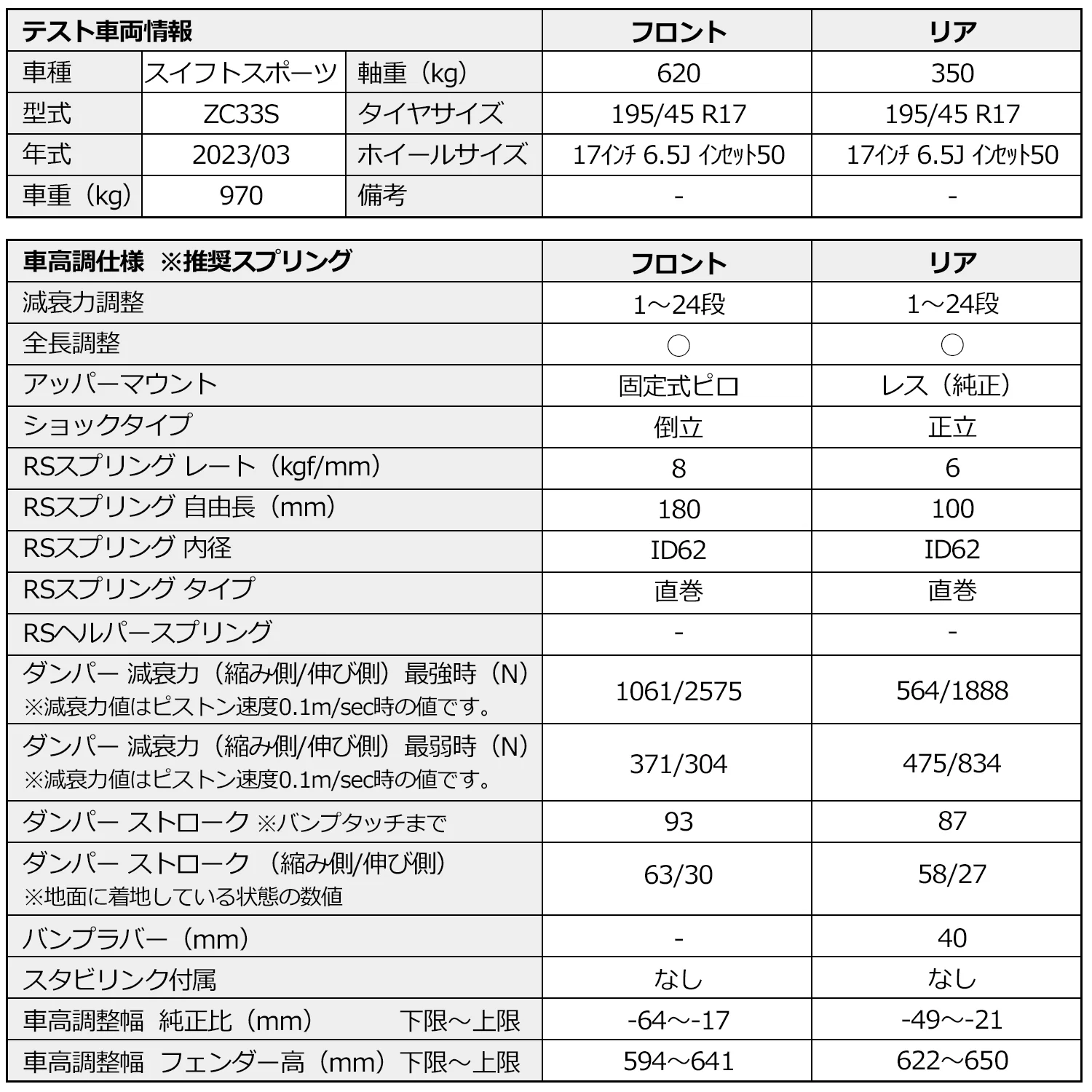

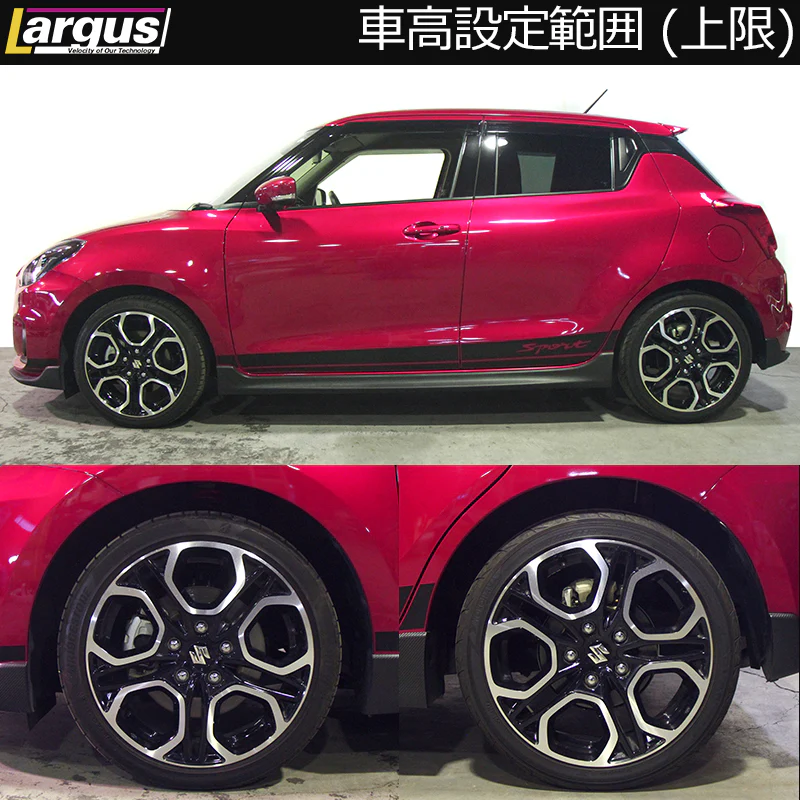

| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: SUZUKI Model: Swift Sport Vehicle model: ZC33S Year: - Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: Fr: 180mm Free length: Rr: 100mm Front upper mount: Fixed pillow Rear upper mount: Mountless Front damping position: Separate dial (lower upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 594mm - 641mm Rear height adjustment range: 622mm - 650mm Lowering amount: -64mm to -17mm Downward R: -49mm to -21mm |
| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both the front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. The vehicle height adjustment range and lowering amount are based on the base specification springs. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011408001-QQ-1 |
| Compatible Car | SUZUKI SWIFT SPORT ZC33S 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: SUZUKI Model: Swift Sport Vehicle model: ZC33S Year: - Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: Fr: 180mm Free length: Rr: 100mm Front upper mount: Fixed pillow Rear upper mount: Mountless Front damping position: Separate dial (lower upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 594mm - 641mm Rear height adjustment range: 622mm - 650mm Lowering amount: -64mm to -17mm Downward R: -49mm to -21mm |
| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both the front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. The vehicle height adjustment range and lowering amount are based on the base specification springs. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
$7.39
LARGUS SPEC SR COILOVER KIT FOR SUZUKI SWIFT SPORT ZC33S 2WD 01011408001-QQ-1—
$7.39
Description
| Brand | LARGUS |
| Series Name | SPEC SR COILOVER KIT |
| Product Number | 01011408001-QQ-1 |
| Compatible Car | SUZUKI SWIFT SPORT ZC33S 2WD |
| Product Description | Product: Full-length adjustable suspension kit Type: SpecSR Manufacturer: SUZUKI Model: Swift Sport Vehicle model: ZC33S Year: - Drive system: 2WD Frequency: 8kg Rear: 6kg Free length: Fr: 180mm Free length: Rr: 100mm Front upper mount: Fixed pillow Rear upper mount: Mountless Front damping position: Separate dial (lower upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 594mm - 641mm Rear height adjustment range: 622mm - 650mm Lowering amount: -64mm to -17mm Downward R: -49mm to -21mm |
| Remarks | If you would like to change the springs, please enter the desired spring type (RS or SS), free length, and rate for both the front and rear in the comments section. If no information is provided, the recommended specifications will be delivered. 24-stage front and rear damping adjustment. The vehicle height adjustment range and lowering amount are based on the base specification springs. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. Individual vehicle variations and assembly conditions may result in discrepancies. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will be activated, so a separate canceller or other solution may be required. *The specifications and accessories of this product are subject to change without notice for product improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
